Centrifuge Machine

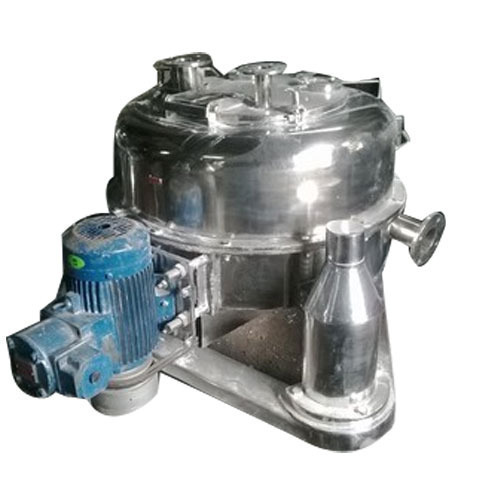

Top Discharge Type Centrifuges

Top Discharge Type Centrifuge is a single point suspension that is extensively used for the solid-liquid division by filtration. The machine works with quick loading and unloading and possess a hassle-free functional life. Featuring bottom driven top discharge provision, the presence of precision manufactured external body support along with interlock safety cover makes this centrifuge highly preferred.

Features:

• Very simple in construction.
• Economic and easy for operation.
• Low maintenance cost.
• Suitable for sticky and hard lump products.

Product Details:

• Automation Type : Semi-Automatic
• Brand : Excel
• Material : SS
• Max. Basket Revolution RPM : 800- 1000'
• Motor : 2- 25 HP
• Rated charge in Basket (Ltrs) : 50-400

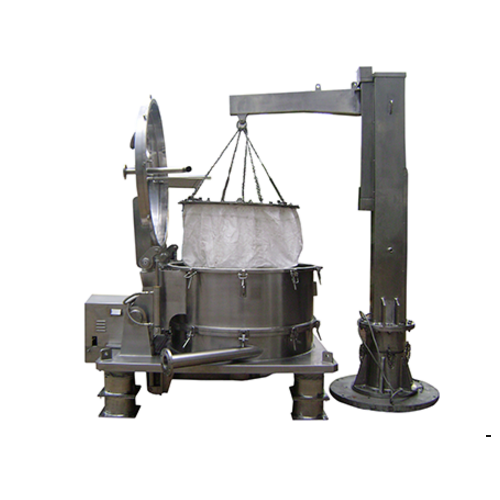

Bag Lifting Type Centrifuges

Bag Lifting Type Centrifuge is the heavy duty centrifuges with fast acceleration and smooth running. The bottom opening of the filter bag allows the drainage of solids so as to make the discharge of solids simple and swift. It involves least manual labor and facilitates for effortless loading and unloading along with superior production capacity per batch.

Features:

• The time required for cake removal is negligible.
• Cake spillage on the floor is nil.
• Easy cleaning of the basket in and out.
• Requires minimum manpower.
• Production is increased.
• Manual contact with cake is avoided.
• Cake can be easily elevated to upper stories without the use of lifts or trolleys.
• More volumetric charge per machine available.
• Full opening of the lid helps maintenance.

Product Details:

• Power Source : Electric
• Basket Diameter (mm) : 60090012001500
• Depth (mm) : Depth (mm)
• Max. Basket Revolution (RPM) : 1000900800
• Model : EPT-24, EPT-36, EPT -48, EPT -60
• Motor : 3,7.5,15,20 HP

Bottom Discharge Type Centrifuges

Manufactured using superior quality material, Bottom Discharge Type Centrifuges is extensively used in chemical industries. The centrifuged solids are scrapped with the help of a scrapper either manually, pneumatically or via hydraulic cylinder. The process of filtration of this machine is similar to that of other centrifuges, the difference lies in the method of unloading the solid. In order to prevent the contact parts and the outer body from rust or spillage, we offer lining/coating. The material used for construction of this centrifuge is as follows:

• Carbon Steel
• Hastelloy
• Rubber Lined
• Stainless Steel
• Fluoro Polymer Coating / Lining viz.- Halar (ECTFE)
• Teflon (PFA)

Features:

• Available in automatic & semiautomatic options
• Available with manual braking system
• Suitable for hygienic applications at pharma companies and food processing plants

Advantages:

• Minimal manual labour
• Low disintegration of crystals
• Automated operation using PLC
• Hazardous, toxic or allergic can be safely handled
• Heel Removal System aids regeneration of filter media

Model	Basket Dia mm.	Height mm.	Volume Ltrs.	Drive HP	RPM	G Value	Filt/Area Sq. meters.
450 CF	450	225 mm.	20-25	2	1440	520	0.35
600 CF	600	350 mm.	50-60	3	1200	480	0.56
900 CF	900	450 mm.	160-200	7.5	960	470	1.35
1200 CF	1200	600 mm.	300-350	15	800	440	1.9
1500 CF	1500	700 mm.	450-550	25	720	440	2.4

Four Point Suspension Centrifuge Machines

Four Point Suspended Centrifuge Machines are the completely automatic machine designed with four point suspension bottom. The machine is backed with support of inertia platform and vibration isolating dampers that ensures smooth functioning. These machines are suitable for flexibly relocating the centrifuge within the plant.

The machine is available with three kinds of scraping system provisions comprising of motorized single motion scraping system, manually operated scraper, and hydraulic dual motion scraping system.

Features:

• The vibration transmission is nil
• Good and clean house – keeping possible
• The machine can be used on upper storey
• No cost of R.C.C foundation.
• Can be shifted easily.

Product Details:

• Automation Grade : Automatic
• Basket Diameter (mm) : 600-1500
• Brand : Excel
• Material : SS
• Motor : 3-20 HP
• Speed : 800-1000 RPM

Horizontal Peeler Type Centrifuge

Our horizontal peeler is a batch type automatic/semi automatic filtering centrifuge. The axis of rotation of the basket in this centrifuge is horizontal. It is ideally suited for a clean room installation – "through the wall" using a flexible membrane as required in pharmaceutical applications.

Optional Features

• Anti Stick coatings on discharge chut
• Hydraulic clamping ring for outer body
• Cake Monitoring system
• Complete automation using PLC

Product Details:

• Automation Type : Automatic
• Brand : Excel
• Diameter (mm) : 630800100012501000
• Material : SS
• Motor : 10-30 HP (approx)

Material of Construction
Stainless steel, Hastelloy, Fluoro-polymer coated (like ECTFE, PFA etc)

Available Sizes
630, 800, 1000, 1250, 1400mm dia, others on request.

Sugar Plant

We are upgrading the sugar plants and its technology with new sophisticated cutting edge technology and constant innovation in the industry. Our developed and engineered sugar plants cut remarkably on steam power usage thus maintaining power house efficiency steady operation. The plant ensures improved exhaustion leading to the bulk production of uniform quality of sugar.


Product Details:

• Capacity : High
• Usage/Application : Industrial
• Automatic Grade : Automatic
• Design : Customized
• Brand : Excel
• Type of Machines : Boiling house, Co-generation system,Boiler,Milling tandem

Falling Film Evaporators

Falling Film Evaporators are products that help in the processing of the liquors. The liquor is a product which is highly sensitive and they are non-crystalline with a rate of specific level of transfer of heat. In these evaporators, the vapor and also the liquid are allowed to flow down in a parallel manner and they are made to evaporate partly at an extremely high temperature.

These products are available at very reasonable market prices. With low operating costs, these products are highly appreciated for their continuous and flawless operations. We offer these evaporators in compact designs to the clients and these are ideal for heat sensitive items. Our Falling Film Evaporators are available with automatic controls and CIP cleaning to our clients.

These evaporators provide gentle product heating and available in a variety of sizes, stages and capacities. Available with thermal vapor recompress, our evaporators are designs with low steam consumption. It is easy to operate and use these products and these have less hold up of materials in the plants. In addition, our products are designed using superb quality raw materials and are used in diverse industries.

Features:

• Accurate
• Efficient
• Cost Effective

Rising Film Evaporators

The liquor is a product which is highly viscous in nature and it requires a lot of processing and hence the Rising Film Evaporators are used for this very purpose.  The liquor has the capability to foul the heating surface and they are heated in the evaporators till steam begins to form and the vapor starts to flow in a parallel way. These instruments are made using a high quality of raw materials and they give a very accurate and high level of performance.

These evaporators are highly used in the various kinds of industries. Our products are highly suitable for the liquid with fouling tendency or high viscosity. These products are available with steam heated tubes that allow the liquid to enter. Our evaporators are delivered within given time period for processing of liquors.

These products are widely known as vertical tube along with steam condensing and are used in different industries including Pharmaceutical, Agrochemical, Food & Dairy and Herbal extracts. These are also used for foaming applications and are thermally efficient in nature. Thus, we offer our products as per the client’s bulk requirements and demands and these are easily available in the market.

Application:

• Food & Dairy industry
• Agrochemical industry
• Herbal industry

Forced Circulation Evaporators

With the help of our trained professionals, we manufacture and supply a qualitative range of Forced Circulation Evaporators, which are available as per the client’s desired demands. These evaporators are widely utilized for processing liquors, crystallizing duties, thermally degradable materials concentration and inversely soluble materials concentration.

Our products are manufactured using advanced technology and modern machines. Our products are designed with large re-circulating pumps as well as wide bore circulating pipe work. We offer these film evaporators at reasonable prices to our respected clients. These products are used in concentrating thermally degradable materials and are manufactured using finest quality raw materials and latest machines. We offer these products for various industries including chemical industry, textile industries, tannery plants, pharmaceutical industry and other allied industries.

These products are also known to provide easy way to allow the heat transfer functions and we offer these products in compact designs to the clients. Our products are available with Solvent recovery as well as high energy efficiency in the market and we offer these products with high capacity. We offer these products along with crystallization option and these are easily available in the national as well as international market.

Features:

• Robust construction
• High durability
• Easy to install

Product Details:

• Design : Customized
• Separator : Yes
• Brand : Excel
• Material : SS
• Power Source : Electric

Agitated Thin Film Evaporators

We are a renowned manufacturer and supplier of Agitated thin Film Evaporators, which are available with different boiling points in order to separate the liquids mixture. These products are also used for enhancing the concentration of liquids and we offer these evaporators at most competitive prices to the clients. Moreover, these products are also used for the recovery of different products and are designed with perfection.

These evaporators avoid the possible degradation as well as re-circulation of products. We design these products using latest machines and tools and our products are available at client friendly prices in the market. Our evaporators are highly suitable for the viscous products and hazardous applications.

These Agitated thin Film Evaporators are highly acclaimed for their good turn down capability and available in diverse operating temperature ranges. Our film evaporators are featured with narrow spread for the heat sensitive products. These Agitated thin Film Evaporators consist of blades in different configuration and we offer them as per the industrial standards to our respected clients. We offer them with very short residence time in the market and these are easily available with advanced mechanism to the clients.

Features:

• Low utility consumption
• High capacity
• Reduced costs
